A Comprehensive Introduction to STM32F103CBT6 Microcontroller [Video]

STMicroelectronics STM32 F1 Mainstream MCUs cover the needs of a large variety of applications in the industrial, medical, and consumer markets. With this series, ST has pioneered the world of ARM® Cortex™-M microcontrollers and set a milestone in the history of embedded applications. High performance with first-class peripherals and low-power, a low-voltage operation is paired with a high level of integration at accessible prices with a simple architecture and easy-to-use tools. These MCUs come with up to 72MHz CPU frequency, from 16Kbytes to 1Mbytes Flash, 4 to 80Kbytes of RAM, and a variety of embedded peripherals, such as USB, timers, USART, temperature sensor, ADC, and DAC to fit all your requirements.

The STM32F103xx medium-density performance line family incorporates the high-performance ARM® Cortex®-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 128 Kbytes and SRAM up to 20 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer two 12-bit ADCs, three general-purpose 16-bit timers plus one PWM timer, as well as standard and advanced communication interfaces: up to two I2Cs and SPIs, three USARTs, a USB, and a CAN.

The devices operate from a 2.0 to 3.6 V power supply. They are available in both the –40 to +85 °C temperature range and the –40 to +105 °C extended temperature range. A comprehensive set of power-saving modes allows the design of low-power applications.

The STM32F103xx medium-density performance line family includes devices in six different package types: from 36 pins to 100 pins. Depending on the device chosen, different sets of peripherals are included, the description below gives an overview of the complete range of peripherals proposed in this family.

STM32F103CBT6 symbol

STM32F103CBT6 footprint

3D model

• ARM® 32-bit Cortex®-M3 CPU Core

– 72 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access

– Single-cycle multiplication and hardware division

• Memories

– 64 or 128 Kbytes of Flash memory

– 20 Kbytes of SRAM

• Clock, reset and supply management

– 2.0 to 3.6 V application supply and I/Os

– POR, PDR, and programmable voltage detector (PVD)

– 4-to-16 MHz crystal oscillator

– Internal 8 MHz factory-trimmed RC

– Internal 40 kHz RC

– PLL for CPU clock

– 32 kHz oscillator for RTC with calibration

• Low-power

– Sleep, Stop and Standby modes

– VBAT supply for RTC and backup registers

• 2 x 12-bit, 1 µs A/D converters (up to 16 channels)

– Conversion range: 0 to 3.6 V

– Dual-sample and hold capability

– Temperature sensor

• DMA

– 7-channel DMA controller

– Peripherals supported: timers, ADC, SPIs, I2Cs, and USARTs

• Up to 80 fast I/O ports

– 26/37/51/80 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant• Debug mode

– Serial wire debug (SWD) & JTAG interfaces

• 7 timers

– Three 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input

– 16-bit, motor control PWM timer with deadtime generation and emergency stop

– 2 watchdog timers (Independent and Window)

– SysTick timer 24-bit down-counter

• Up to 9 communication interfaces

– Up to 2 x I2C interfaces (SMBus/PMBus)

– Up to 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)

– Up to 2 SPIs (18 Mbit/s)

– CAN interface (2.0B Active)

– USB 2.0 full-speed interface

• CRC calculation unit, 96-bit unique ID

• Packages are ECOPACK®

STMicroelectronics STM32F103CBT6 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM32F103CBT6.

• motor drives

• application control

• medical and handheld equipment

• PC and gaming peripherals

• GPS platforms

• PLCs

• Inverters

• Printers

• Scanners

• alarm systems

• video intercoms

• HVACs

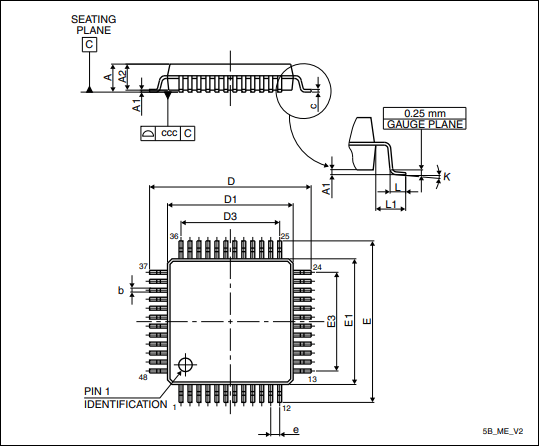

LQFP48 - 48-pin, 7 x 7 mm low-profile quad flat package outline

LQFP48 package top view example

STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology, and its products play a key role in enabling today's convergence trends.

Download datasheets and manufacturer documentation for STMicroelectronics STM32F103CBT6.
